Manifolds
Efficient solutions for distributing and controlling fluids.
Application:
Pressure and Differential Pressure Instrumentation
Features:

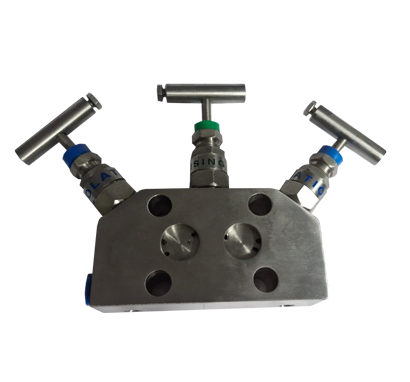

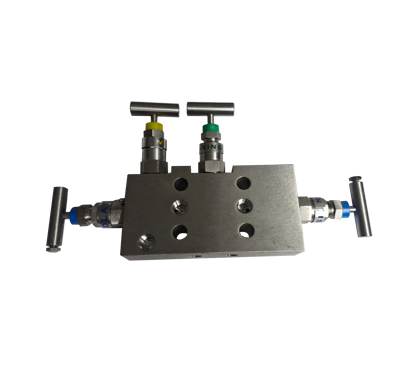

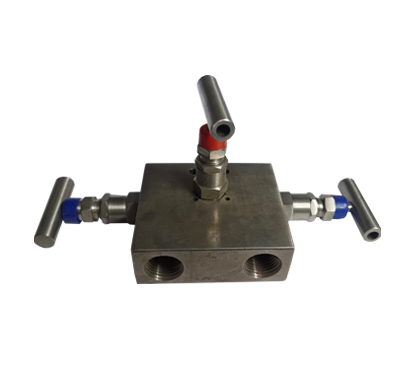

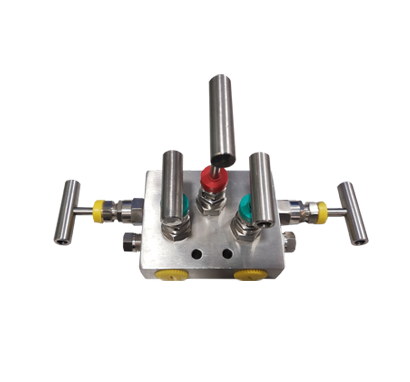

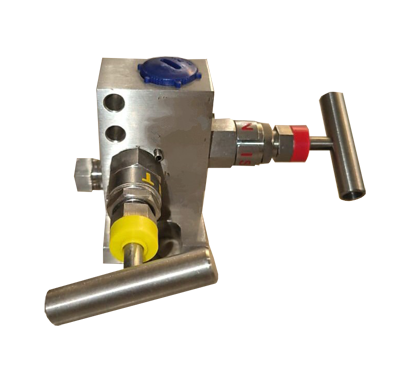

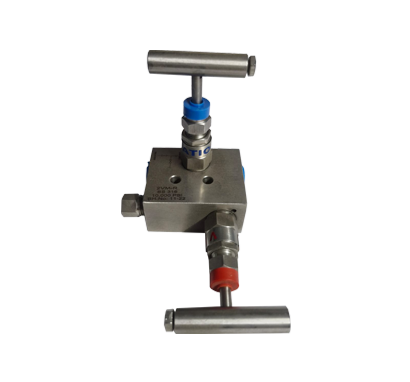

- Standard two, three, five valve manifold designs.
- Stainless Steel, Alloy 400 (Monel), A105.
- Available direct or remote mounting.
- Isolation, Calibration and Vent.
- Separately mounted, direct mounted (T type, H type), co-planar, and flanged configurations.
- IBR certification offered.
- Case hardened non-rotating swiveling plug or ball and thread above seal design.
- End connections and valve material to customer requirements.
- Heat code traceability.
Specifications:
Maximum operating pressure:
6000 psig (413 bar) @ 100°F (38°C)
Operating temperature:
PTFE: -65°F (-54°C) to 450°F (233°C)Graphoil: -65°F (-54°C) to 1200°F (649°C)
Working pressure:
up to 10,000 psi (689 bar)
