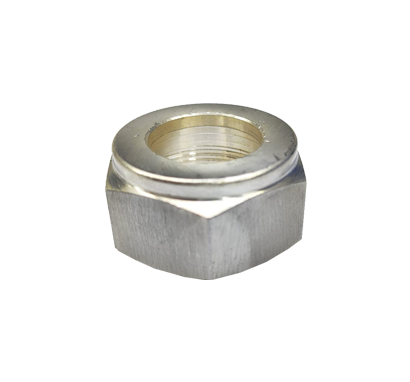

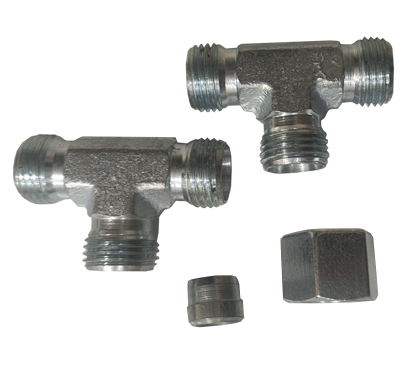

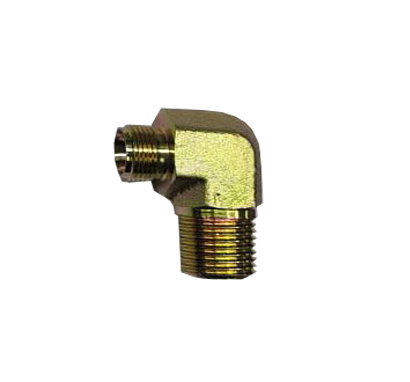

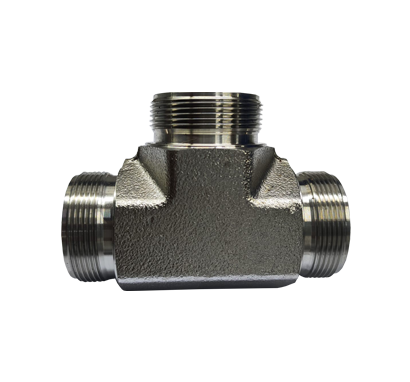

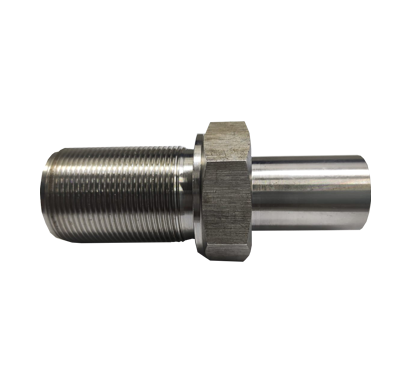

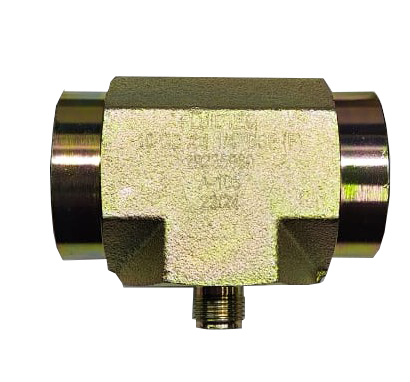

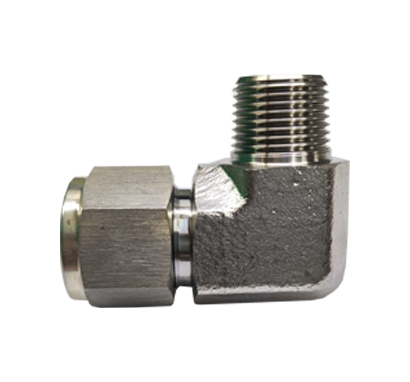

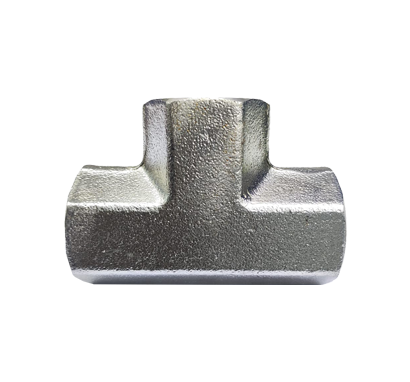

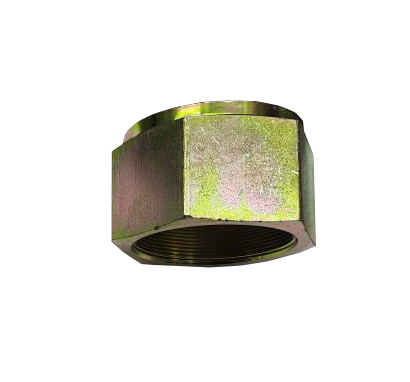

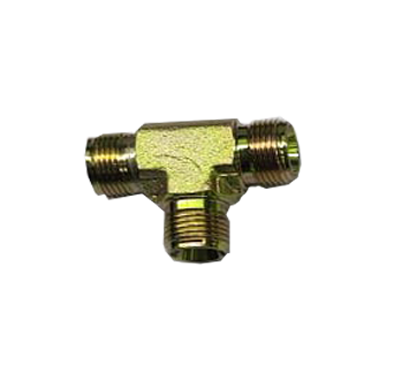

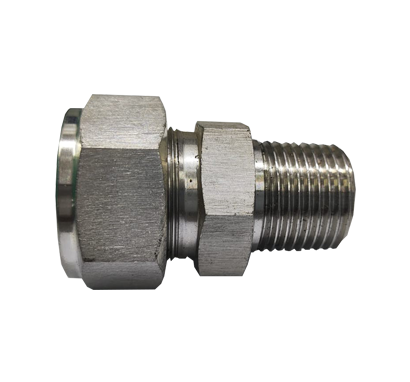

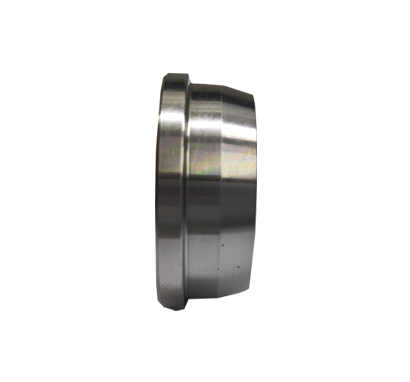

Tube Fittings
Precision-engineered for leak-free connections
Features:
- Compression Type Double Ferrule Design.
- Performance and Type Tested in accordance with ASTM F1387-19, BS 4368.
- Stainless Steel, Brass, Alloy 400 (Monel), Duplex.
- Complete Interchangeability and Intermix ability.
- Vibration Resistance
- Excellent Make and Re-make Life.
- Heat code traceability.
- End connections & materials to customer requirements size upto 2 inches.
- Comply with vibration norms of BS EN 61373, corrosion resistance of IEC 60068-2-52
- Guageability
Specifications:
Maximum operating pressure
9000 PSIg (620 Bar) @ 100°F (38°C)
Operating temperature
-325°F (-198°C) to 1200°F (648°C)
Working pressure
As per ASME B31.3
